AATCC Recommended Dryer

Company Information

REFOND Equipment Co., Ltd. is focusing on the development, manufacturing and sales of high-quality textile testing equipment and testing consumables.

Order Information

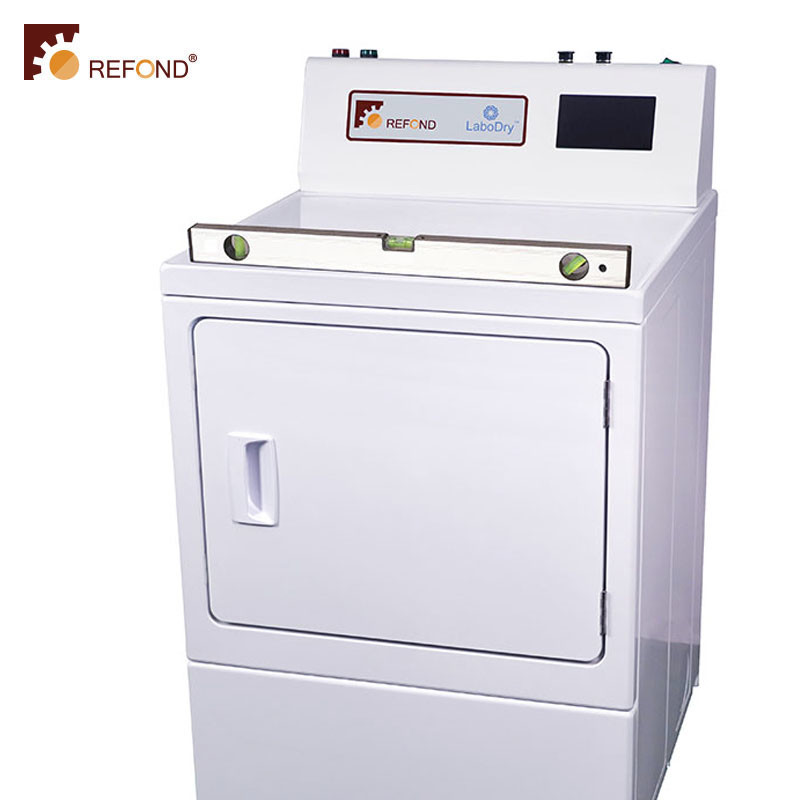

RF6088D  LaboDry Drying Machine

Product Instruction

LaboDry drying machine is designed to meet AATCC home laundering procedures.
LaboDry is designed to meet the parameters list in the Table VI of AATCC Laboratory Procedure 1.

The drying machine is controlled by touchscreen, which the following parameters can be set or selected:
a) Dry programs (Normal, Delicate, Permanent Press, No Heat) can be selected.
b) Drying Time.
c) Cooling Down Time.
d) Target Humidity Function.:Drying time is controlled by the target humidity values measured at the exhaust duct position.
e) Target Humidity %RH.

Calibration function for traceability:
a) Temperature.
b) Relative Humidity.

The LaboDry drying machine is so designed as to meet all the related AATCC testing standards. In addition, one more design is made to control the drying time by the target relative humidity value measured at the position of the exhaust duct.

Applications

Textile Fabrics

Standards

Product Specifications

- Temperature Automatic Control: ±1°C.
- Drying Time: ±10seconds.
- Cooling Time: ±10seconds.
- Loading capacity: 10.5kg max.
- Language: English/Chinese.
- Door safe switch.
- LED indicators signals.
- Power: AC230V 50Hz, 5.0kW
- Dimension: 685(L)×710(W)×1100(H)mm

- Weight: Appro. 65kg

List of Consumables

N/A
