PPE Textile Testing Equipment , Impact Penetration Tester AATCC 42

Place of Origin Shen Zhen, China (Mainland)
Brand Name REFOND
Certification ISO 17025/ CE
Model Number RF4418A
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden Box
Delivery Time 1-2 weeks
Payment Terms L/C, D/A, D/P, T/T
Supply Ability No limitation

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Warranty 12 Months Shipping Support Express · Sea Freight · Land Freight · Air Freight
Product Positioning High Quality Positioning Item Water Repellency Tester
High Light

bundesmann Water Repellency Tester


610mm Water Repellency Tester


AATCC 42 impact penetration tester

Leave a Message
Product Description

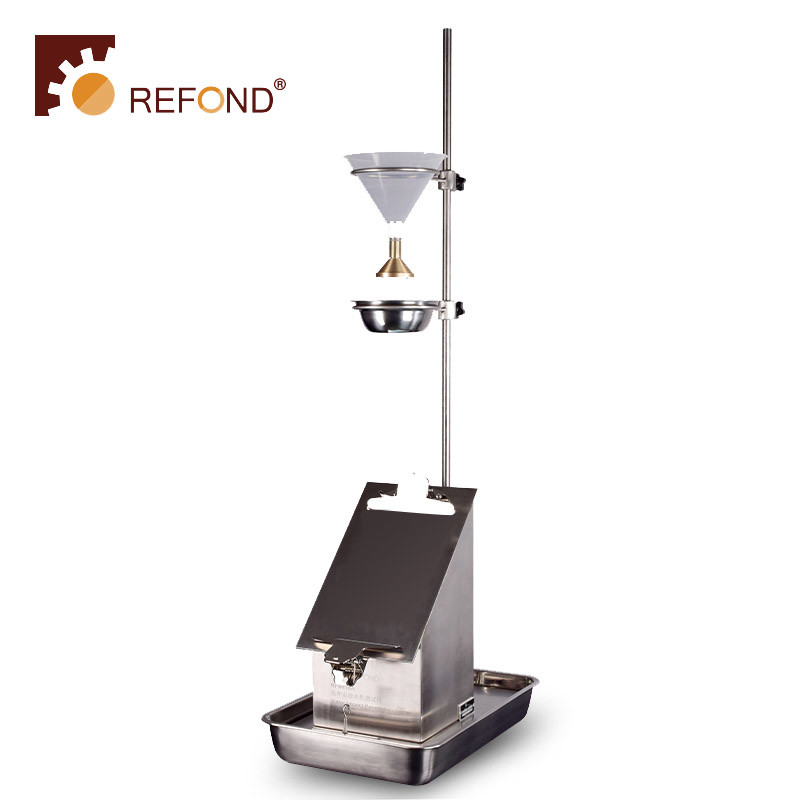

REFOND Textile Testing Equipment Impact Penetration Tester AATCC 42


Company Information

REFOND Equipment Co., Ltd. is focusing on the development, manufacturing and sales of high-quality textile testing equipment and testing consumables.


Product Specifications

- Funnel height: 610mm ± 10 mm
- The angle of slip and loss platform is 45 °;
- Nozzle inner diameter 45.4mm, 25 holes, 0.99mm ± 0.005mm.


Product Instruction

Water Impact Penetration Tester is used to determine the water resistance of fabrics under low impact conditions, and to predict the rain resistance of wearing fabrics.
Spray a certain amount of water from a height of (610±10) mm from the sample to be tested to the surface of the sample with a certain tension, and attach a known weight of absorbent paper on the back of the sample. After spraying, weigh the mass of absorbent paper again and calculate the permeability.

One end of the specimen is clamped on the steel plate with the metal spring clamp along the width direction. The length of the metal spring clamp mouth is (152 ± 10) mm, and the total mass is (152 ± 10) mm( zero point four five + zero point zero five )Kg metal spring clamps the other free end of the sample, and the test surface of the sample is subject to spray. Weigh the mass of white absorbent paper (152 ± 10) mm × (229 ± 10) mm to the nearest 0.1g And insert it between the sample and the test bench.

Pour (500 ± 10) ml of reagent into the funnel of the tester to spray the sample, and avoid vortex as much as possible during water pouring.
After the completion of spraying (2S after the continuous spraying stops), take out the absorbent paper carefully, and quickly weigh the mass of the absorbent paper to the nearest 0.1g



Waterproof fabric, Coating fabric, Diving suit, Medical Protective Clothing Material, etc;




GB/T 33732 GB/T 24218
YY/T 1632 YY/T 1499 ISO 18695


Order Information

RF4418A  Water Impact Penetration Tester
